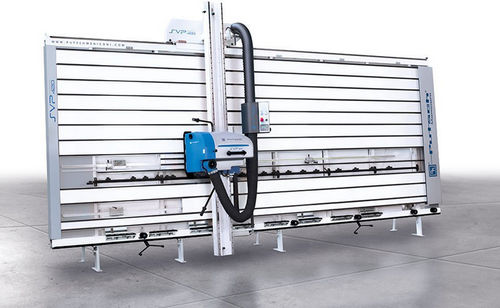

Panel saw SVP 420

verticalwoodfor plastics

Vertical panel saw SVP 420 | Your Putsch® Meniconi Panel Saw affordable and unique in its gender, with double motor and head sliding along two linear guides SVP 420 Panel Saw Manual vertical panel saw SVP 420 in addition of having a scoring unit with two split saw blades has an independent motor with mechanical insertion. SVP 420 MANUAL has as standard equipment the sliding of the head along two linear guides, permitting to the operator, an high speed of use, and a tuning more precise and accurate. These characteristics make SVP 420 MANUAL unique in the sector of vertical panel saws. TECHNICAL DETAILS Motor output: 5HP Blade diameter: 250 mm Blade r.p.m. (min): 5300 Shifting frame: electric Max. lenght of horizontal cut: 4200 mm Max. height of vertical cut: 2200 mm Max. height of horizontal cut: 2080 mm Max depth of cut: 60 mm Scoring blade diameter: 80mm
