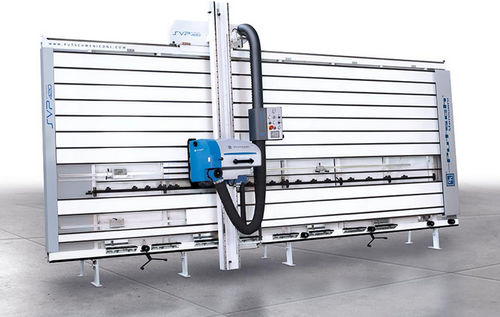

Panel saw SVP 420 A

verticalwoodfor plastics

Vertical panel saw SVP 420 AUTOMATIC | Your Vertical Panel Saw with high Professionality and versatility ! Vertical panel saw SVP 420 AUTOMATIC by Putsch® Meniconi SVP 420 AUTOMATIC vertical panel saw has an engraving group with 2 double blades in its standard equipment, and has an automatic movable platen that permits not to damage the loading strips during the horizontal cuttings. SVP 420 AUTOMATIC is also equipped with laying base on blocks and retractable wheels. Automatic movement of the beam and the carriage to perform every horizontal and vertical cutting with adjustable feeding speed by inverter from 10 to 24 mts/1’. Vertical panel saw SVP 420 AUTOMATIC is projected to occupy the less space possible inside Putsch® Meniconi customer companies. TECHNICAL DETAILS Motor output: 6HP Blade diameter: 250 mm Blade r.p.m. (min): 5300 Shifting frame: pneumatic Max. lenght of horizontal cut: 4200 mm Max. height of vertical cut: 2200 mm Max. height of horizontal cut: 2080 mm Max depth of cut: 60 mm Scoring blade diameter: 80mm
