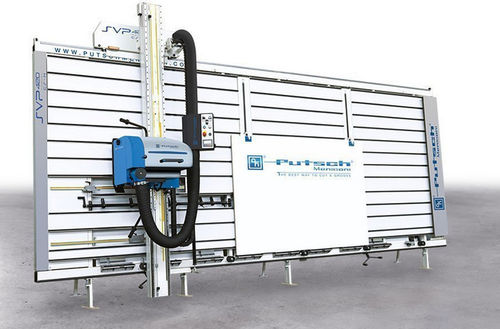

Panel saw SVP 420 CS

verticalwoodfor plastics

Vertical panel saw with clamps SVP 420 CS | Your Best Way to Cut Putsch® Meniconi with the Lifting Panel System more comfortable ever seen before! SVP 420 CS Panel Saw This panel saw has the fundamental characteristic of having 2 movable clamps to lift panels till 120 kg with a depth till 35 mm to make trimmings on the lower part of the panel. Through this system the operator can do trimmings and cutting workings in a totally independent way participating for an enormous reduction of the producing cycle. Wall saw with clamps SVP 420 CS as vertical saw SVP 420 is equipped with an engraving with independent motor and linear guides to move the head. This si one of the best cutting systems extremely precise and patented by Putsch® Meniconi since 2004 when it was presented for the first time this machine with this moving system. TECHNICAL DETAILS Motor output: 5HP Blade diameter: 250 mm Blade r.p.m. (min): 5300 Shifting frame: pneumatic Max. lenght of horizontal cut: 4200 mm Max. height of vertical cut: 2200 mm Max. height of horizontal cut: 2080 mm/ 2030 mm Max depth of cut: 60 mm Scoring blade diameter: 80mm
