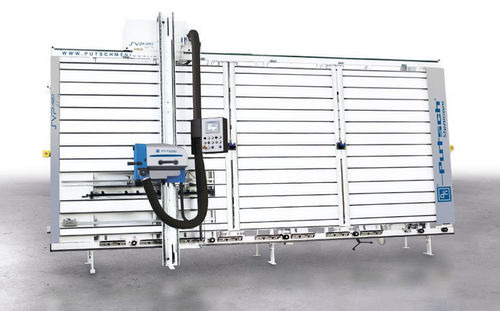

Panel saw SVP 420 A CS TOUCH

verticalwoodfor plastics

Vertical panel saw SVP 420 A CS TOUCH | Your Best Way to Cut Putsch® Meniconi with the Lifting Panel System more comfortable ever seen before! SVP 420 A CS TOUCH Panel Saw SVP 420 A CS TOUCH panel saw has the fundamental characteristic of having 2 movable clamps to lift panels till 120 kg with a depth till 35 mm to make trimmings on the lower part of the panel. Through this system the operator can do trimmings in a totally independent way participating to an enormous reduction of the producing cycle. SVP 420 A CS TOUCH as SVP 420 is equipped with an engraving with independent motor and linear guides to move the head. This is one of the best cutting systems extremely precise and patented by Putsch® Meniconi since 2004. TECHNICAL DETAILS Motor output: 6HP Blade diameter: 250 mm Blade r.p.m. (min): 5300 Shifting frame: electric Max. lenght of horizontal cut: 4200 mm Max. height of vertical cut: 2200 mm Max. height of horizontal cut: 2080 mm/ 2030 mm Max depth of cut: 60 mm Scoring blade diameter: 80mm
