Panel saw SVP 950

verticalwoodfor plastics

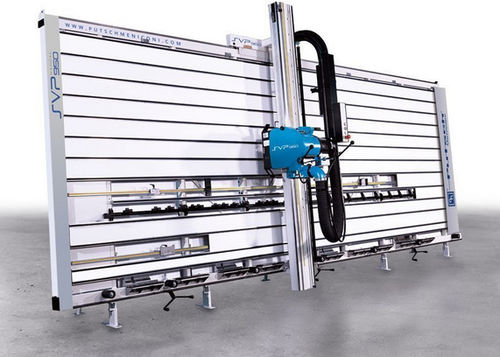

Vertical Panel Saw SVP 950 | High Depth materials cutting with a working plan of 5300 mm Putsch® Meniconi SVP 950 Vertical Panel Saw Vertical Panel Saw SVP 950 MANUAL has a maximum vertical cutting height of 2200 mm and a maximum cutting length of 5300 mm. In fact, its 300 mm diameter blade SVP allows 950 MANUAL panel saw to cut wood panels, such as plywood, phaesite, masonite, lamellar, listellar. Thanks to its powerful motor equal to 7,5 HP SVP 950 MANUAL panel saw cuts plastic materials with a maximum height thickness of 80 mm. Indeed, Pustch® Meniconi SVP 950 M engine is one of the most powerful and performing motors among vertical panel saws with a power equal to 7,5 HP. The manual vertical panel saw SVP 950 panel saw is able to cut panels of hard materials such as cardboard, corian, insulated panels, poliyuretane and Trespa. TECHNICAL DETAILS Motor output: 7,5HP Blade diameter: 300 mm Blade r.p.m. (min): 5000 Shifting frame: electric Max. lenght of horizontal cut: 5300 mm Max. height of vertical cut: 2200 mm Max. height of horizontal cut: 2100 mm Scoring blade diameter: 80mm
