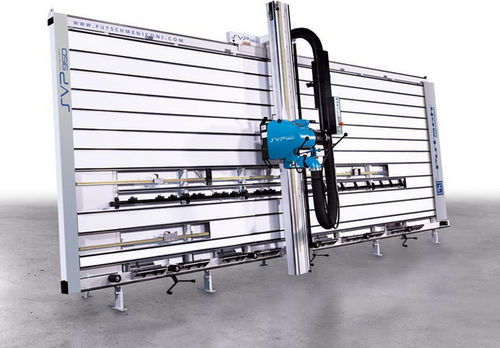

Panel saw SVP 950 A

verticalwoodfor plastics

Vertical panel saw SVP automatic 950 | Top range, the highest precision, for an always perfect cutting Automatic vertical panel saw SVP 950 – Putsch® Meniconi SVP 950 A is a top range model present with success in the market of panel saws for many years caracterized by its heavy-dutiness, maximum precision and multiple functions. It has a vast choice of accessories and devices to make the cutting experience unique. Vertical panel saw automatic SVP 950 maximum cutting length 5300 mm, height till 2200 mm and cutting thickness till 80 mm. Automatic movement of the beam and the carriage to perform every horizontal and vertical cutting with adjustable feeding speed by inverter from 10 to 24 mts/1’. TECHNICAL DETAILS Motor output: 7,5HP Blade diameter: 300 mm Blade r.p.m. (min): 5000 Shifting frame: electric Max. lenght of horizontal cut: 5300 mm Max. height of vertical cut: 2200 mm Max. height of horizontal cut: 2100 mm Scoring blade diameter: 80mm
