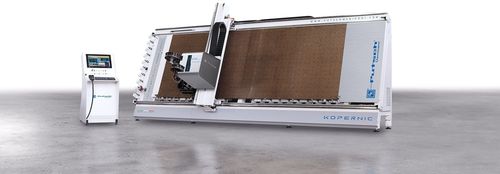

3-axis CNC machining center KOPERNIC

verticalcuttinghigh-performance

Vertical CNC working center | high technology and precision. CNC Kopernic Vertical Machining Center The right CNC which allows to process various kind of panels saving space into the working room. More flexibility and higher performances by using the aggregates allowing to increase the productivity and avoid dead times. Technical details Working area : x 4200 / 6500 - y 1600 / 2200 - z 100 (mm) Overall dimensions : 6500 / 8800 x 3500 x 2600 / 3200 (mm) Axis speed : x 45 - y 30 - z 15 m/min Working table : Vacuum zone with MDF sacrificial panel - 8 locking areas selectable from UI Vacuum pump : 250 m³/h - 6 Kw Second vacuum pump (optional) : 250 m³/h - 6 Kw Electrospindel : 8 Kw - cone ISO 30 - Clamp ER32 Option : C Axis (for aggregates) Tool changer : Automatic Tool storage : N. 10 positions Positions for aggregates : N. 10 positions Blade diameter /Cutter aggregate : 150 mm Option electro-spindle cutter / blade : 5.5 Kw. - blade / cutter diameter 200 mm Guides lubrication : Automatic Total weight : 2900 Kg Absorbed power : 19 Kw (OPT. 25 Kw)
