Belt conveyor TB 130
hydraulichorizontaltransport

Belt conveyor - TB 130 - Putzmeister - hydraulic / horizontal / transport
Belt conveyor - TB 130 - Putzmeister - hydraulic / horizontal / transport
Belt conveyor - TB 130 - Putzmeister - hydraulic / horizontal / transport - image - 2
Belt conveyor - TB 130 - Putzmeister - hydraulic / horizontal / transport - image - 3
Belt conveyor - TB 130 - Putzmeister - hydraulic / horizontal / transport - image - 4
Belt conveyor - TB 130 - Putzmeister - hydraulic / horizontal / transport - image - 5
Belt conveyor - TB 130 - Putzmeister - hydraulic / horizontal / transport - image - 6
Belt conveyor - TB 130 - Putzmeister - hydraulic / horizontal / transport - image - 7
Belt conveyor - TB 130 - Putzmeister - hydraulic / horizontal / transport - image - 8
Add to favorites
Compare this product


Characteristics

Technology
belt, hydraulic
Form
horizontal
Function
transport
Construction
mobile
Drive mechanism
hydraulic drive
Transported product
for concrete
Sector
construction
Other characteristics
lightweight
Effective width

457 mm
(18 in)

Description

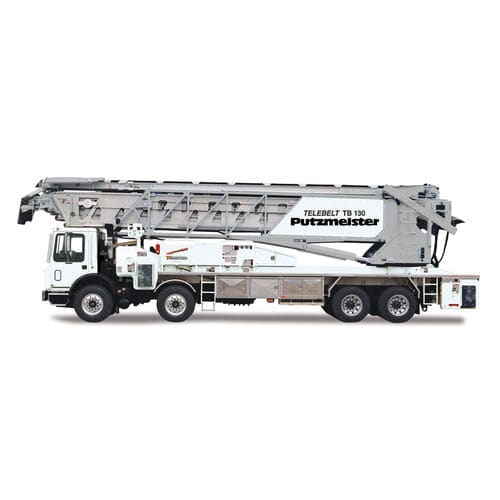

Strong, yet lightweight and easy to control, the Putzmeister Telebelt® TB 130 conveyer has a 126' 6" (38.55m) horizontal reach to save you time and labor. The five-section telescoping boom and fully hydraulic conveyor handle concrete slumps from 0 to 12 inches (0 to 305mm) and materials ranging from sand to 4-inch (100mm) rock. With an outrigger design for quick setup in congested areas and rough terrain, the TB 130 is ideal for projects such as wind farms, dams, bridge decks, and landscaping. Key Features Six hopper options to fit different job needs Low unfolding height Handles high volumes, wide variety of materials Reversing conveyor feature to switch direction of material flow Performs multiple tasks from one location Number of sections 5 Conveyor Horizontal Reach 38.47 m Conveyor Horizontal Reach 33.74 m Feed Conveyor Length 11.60 m End Hose Length max. 4.57 m Discharge height from grade 20.81 m Discharge height from grade -7.86 m Observed capacity 4 m³/min Observed capacity 4 m³/min Rotation 360° Reach from Front of Truck 36.81 m Reach from Front of Truck 31.99 m Outrigger spread - hydraulically rotate out and down (front-rear) 8.46/8.84 m Outrigger load: Front-Rear 166/201 kN Weight 35508 kg
