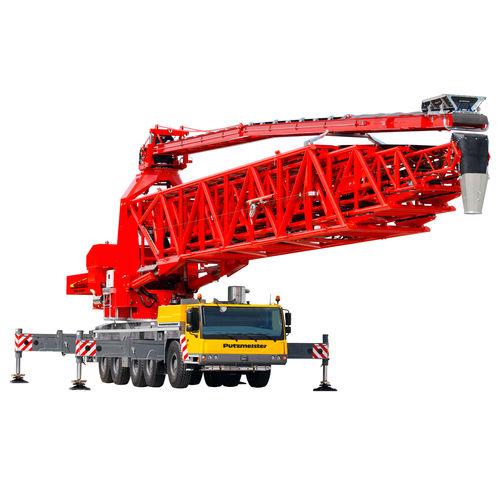

Belt conveyor TB 200

horizontalconstructionfor concrete

Meets Demanding Material Placement Needs With 200 feet (61 meters) of horizontal reach, the Putzmeister Telebelt® TB 200 is ideal for large aggregate and mass concrete placement. The main and feed conveyors have infinitely variable speed with 360-degree rotation. With six steering modes, it is easily maneuverable on the job site, and is ideal for work on hydroelectric dams, power plants, breakwater structures and high speed rail construction. Key Features Four-section high strength yet lightweight boom Steel counterweight to offset the load of the boom Eight wheel drive and self-leveling chassis for steering versatility, with tight turning radius for maneuverability Six steering modes Number of sections 4 Conveyor Horizontal Reach 61 m Conveyor Horizontal Reach 53.20 m Feed Conveyor Length 22.10 m End Hose Length max. 4.57 m Discharge height from grade 34.70 m Discharge height from grade -11.40 m Rated capacity main and feed conveyors by minute 5 m³/min Rated capacity main and feed conveyors by minute 5 m³/min Rotation 360° Outrigger spread - hydraulically rotate out and down (front-rear) 8.30 m Weight 107600 kg
