Mixer truck-mounted truck-mounted concrete pump M20-4hybrid
Add to favorites
Compare this product
Characteristics
- Configuration
- mixer truck-mounted
- Type of fuel
- hybrid
- Output
110 m³/h, 150 m³/h
(3,884.6 ft³/h, 5,297.2 ft³/h)- Pumping pressure
78 bar, 83 bar
(1,131.3 psi, 1,203.8 psi)- Width
2,500 mm
(98 in)- Length
10,000 mm
(394 in)- Height
4,000 mm
(157 in)
Description

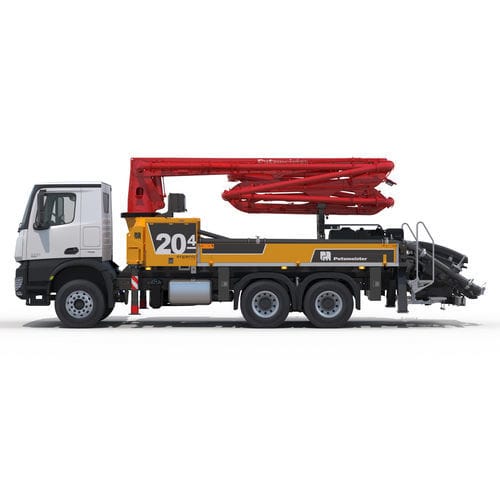

Compact Truck-Mounted Concrete Pump with Flexible 4-Arm-Boom for a Low Unfolding Height
The Putzmeister M20-4 truck-mounted concrete pump comes with a complete new pedestal design and new core pumps .11H and .15iLS.
Designed for tightest spots the BSF 20-4 has the smallest support width and lowest unfolding height in the Putzmeister Portfolio. This machine can be operated where no other machine can be set up. It finds its application in halls, tunnels, renovations, or line jobs.
Key Features
Easier set-up with the new TRC pedestal
Stepless outrigger system - any leg position is possible
Various storage options for every configuration
ZR boom folding with 3.9m unfolding height
Eco friendly hybrid drive iONTRON as option (with 3-Axle chassis)
Latest Ergonic 3 control
