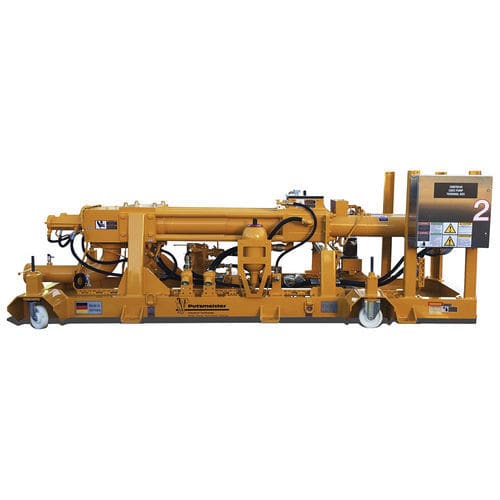

Mobile concrete pump HSPfor constructionpiston
Add to favorites
Compare this product
Characteristics
- Configuration
- mobile
- Applications
- for construction
- Other characteristics
- piston
- Output
Max.: 400 m³/h
(14,125.9 ft³/h)Min.: 25 m³/h
(882.9 ft³/h)- Pumping pressure
70 bar, 150 bar
(1,015.3 psi, 2,175.6 psi)- Width
2,400 mm
(94 in)- Length
9,500 mm
(374 in)- Height
2,100 mm
(83 in)
Description
Transports Highly Viscous Materials with a Low Content of Foreign Bodies
The HSP (hydraulic seat valve pump) is an oil-hydraulic piston pump with hydraulically actuated seat valves. It is used to transport highly viscous materials with a low content of foreign bodies at smaller particle sizes (diameter < .2” (5mm)). All moving parts are connected to a central grease lubrication system in order to increase the lifetime of the components.
Key Features
Valve discs and valve seats made of highly wear resistant steel for a longer lifetime
No backflow at high pressures
More effective with material containing a high proportion of air Outputs up to 261 yd³/hr (200m³/hr)
Delivery pressure up to 1885 psi (130 bar)
Easy to install damping tanks
Catalogs
No catalogs are available for this product.
See all of PUTZMEISTER‘s catalogs
