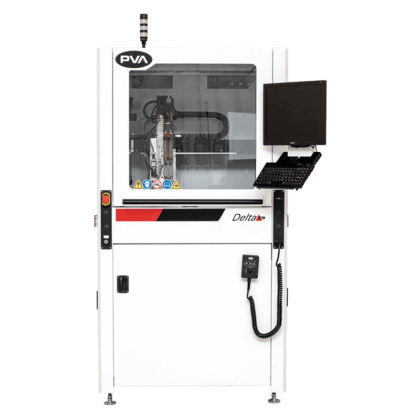

Robotic dispensing system Delta 8

jetting

The Delta 8 is a flexible robotic conformal coating/dispensing system that is ideal for selective coating, potting, bead, and meter-mix dispensing applications. Conceptualized for maximum flexibility, the system can also be configured for custom assembly applications. Maintaining the preferred features of previous workcells, the Delta 8 features a robust overhead three-axis motion platform suitable for inline or batch operations. Improved structural and gantry rigidity have been added for robustness and easier access. The Delta 8 has many options and integrated features including: Robotic system repeatability of 25 microns Patented servo-controlled optional four-axis motion featuring valve tilt and rotate Closed-loop process control throughout gantry system Multiple dispensing applications or materials in one cell Onboard PC for unlimited program storage ExclusivePathMaster® programming environment Conformal Coating The application of a protective film or layer of liquid onto a PCB, either in selected areas or over the entire assembly. Conformal coatings are applied using an array of technologies such as atomized spray, airless film, needle dispense and jetting. Dam & Fill A two-step process of first dispensing a high viscosity fluid around the perimeter of a device or electronic circuitry, and then dispensing a low viscosity fluid within the perimeter to fully encase the components. The dam can be applied as a single or multi-layer bead depending on the target fill height required. Encapsulation & Glob Top Applying an epoxy or silicone-based fluid that completely covers a defined area around a flip chip or wire bonded component.
