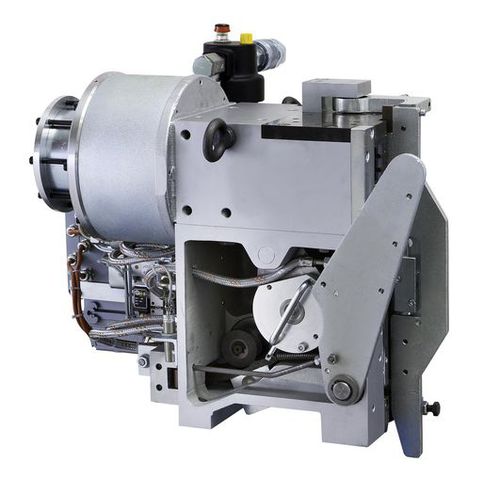

Steel strap strapping head VS 31

pneumatic

The VS31-L stands for highest force development in heavy industrial applications. In this segment, it feels at home all over the world and has built up an excellent reputation on the market over the years. There are many reasons for that: Although it is certainly possible to describe the VS31-L as a classic, TITAN adapted this head to current requirements of heavy industry through continuous further development. It is designed for strapping with high performance and automatic straps of 19, 25 or 32 mm width on flat or large circular packages. Simple operation, maintenance-friendly technology and finally a tensioning force of up to 20,000 N are further advantages of this head. In addition, the patented TITAN sealless joint that prevents the strapping from being pushed back and thus ensures maximum reliability at the high tensioning forces that this head generates pneumatically. The VS31-L is an old hand that gets the heavy industry going. • Technical Data : • Kind of drive : Electro pneumatic • Tension force : 2,000 - 20,000 N (adjustable) • Mains voltage : 400 V - 50/60 Hz • Control voltage : 24 V ; 110 V • Strap conveying speed : 1.7 m/s • 5.6 ft/s • Dimensions : 600 x 610 x 616 mm (L x W x H) • 23.6 x 24.0 x 24.3" (L x W x H) • Weight : 240 kg • 529.1 lb • Air pressure : min. 5 bar flow pressure • max. 6 bar • Air consumption • (depending on channel size) : ca. 0,3 - 0,4 m³ per strapping • approx. 10.6 - 14.1 ft³ per strapping • Cross-section : 3/4" • Temperature range • (Hot / Cold) : Cold, Hot
