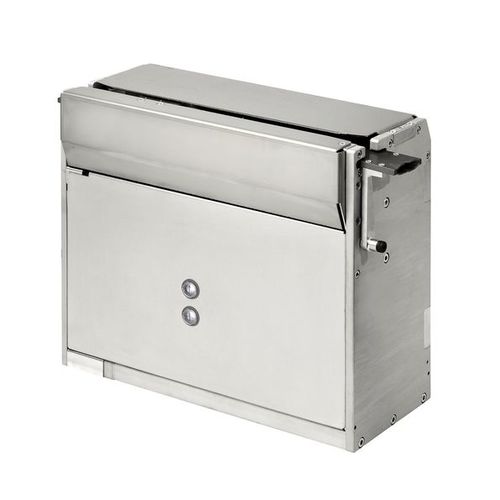

Plastic strap strapping head T200

electric

The experts at TITAN have done their utmost to develop a compact, service-friendly and efficient head for plastic strapping with friction weld joint. The result is impressive: The T200 offers ultramodern drive technology in the smallest format. One DC drive per function eliminates the need for a wear-prone coupling. The strap tension is set electronically reaching up to 2,500 N / 520 lbs. The T200 works with PP and PET strapping sizes from 3/8" to 5/8" width. That´s why building materials, logistics and general pallet strapping applications prefer this head. Further T200 defining advantages: Thanks to its narrow design, the head can also be used horizontally for strapping close to baseboard. Overall, TITAN succeeded in creating a small engineering masterpiece. Technical Data : • Kind of drive : Electric • Tension force : 200 - 2,500 N (adjustable) Standard • 200 - 1,200 N (adjustable) when using small counter-plate • Power supply system : 24 V DC • Current consumption : max. 25 A • Power : max. 600 W • Strap conveying speed : ca. 3.2 m/s • approx. 10.5 ft/s • Dimensions : 560 x 215 x 430 mm (L x W x H) • 22.0 x 8.5 x 16.9" (L x W x H) • Weight : ca. 60 kg • approx. 132.3 lb
