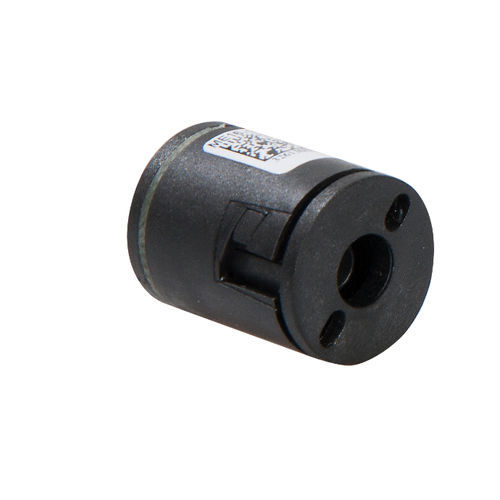

Incremental angle encoder ME 16optical5 VDC
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Supply voltage
- 5 VDC
- Output frequency
60 kHz
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 85 °C
(185 °F)
Description
The ME16 is a reliable low cost optical hollow shaft encoder that can be fixed quickly and
easily on différent sizes of motor shafts.
The encoder provides two square wave outputs in quadrature (90 degrees phase shifted) for
counting and direction information.
The resolution of the encoder is determined by the number of counts per révolution (CPR).
Power supply and signais are provided by a 4 pin Molex connector.
Features
Small size: 16.0 mm diameter x 22.6 mm length
Quick and easy assembly without touching sensitive components
Output channels: 2 (quadrature)
Power supply: 5 VDC.
Output type: TTL compatible.
Resolution up to 230 CPR (counts per révolution)
Maximum shaft diameter: 3.175 mm (1/8")
Compliant EU-directive 2002/95/EG (RoHS)
