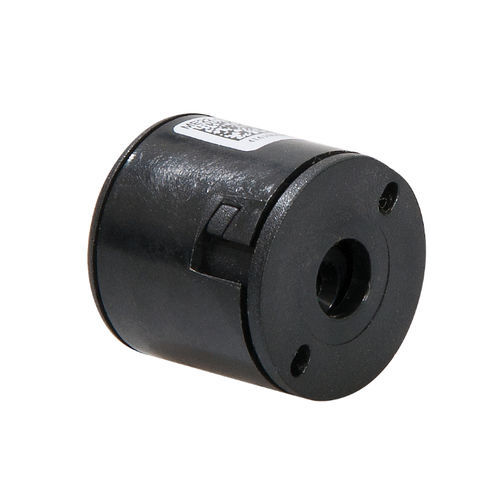

Incremental angle encoder ME 22

optical

The ME22 is a reliable low cost optical hollow shaft encoder that can be fixed quickly and easily on différent sizes of motor shafts. The encoder provides two square wave outputs in quadrature (90 degrees phase shifted) for counting and direction information. The resolution of the encoder is determined by the number of counts per révolution (CPR). Power supply and signais are provided by a 5 pin Molex connector. Features • Small size: 22.0 mm diameter x 21.9 mm length. • Quick and easy assembly without touching sensitive components • Output channels: 2 (quadrature) • Power supply: 5 VDC • Output type: TTL compatible • Output circuit: pull-up • Resolution up to 360 CPR (counts per révolution) • Maximum shaft diameter: 9.525 mm (3/8") • Compliant EU-directive 2011/65/EU (RoHS)
