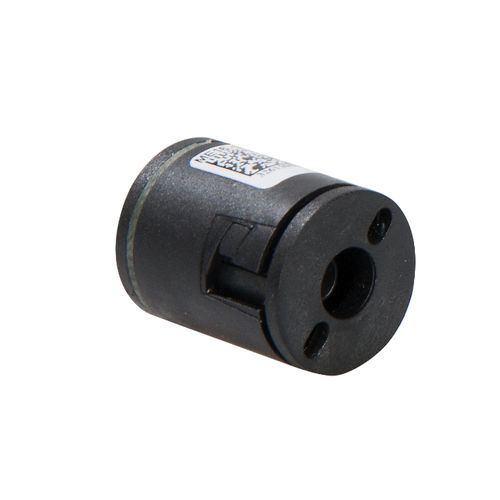

Incremental angle encoder MEM 16 IE

magnetic5 VDC

The MEM 16 is a magnetic incrémental encoder. He is a reliable low cost hollow shaft encoder that can be fixed quickly and easily on différent sizes of motor shafts. The encoder is developed for brushless motors, motor feedback applications and rotational speed control. The MEM 16 is a real time system for high speed applications and rough environments. The encoder provides two square wave outputs in quadrature (90 degrees phase shifted) for counting and direction information. The resolution of the encoder is determined by the number of counts per révolution (CPR). The power supply is 5V. Power supply and signais are provided by a 4 pin Molex connector. Features ♦ Small size: 16.0 mm diameter x 22.6 mm length • Quick and easy assembly • Output channels: 2 (quadrature) ♦ Power supply: 5 VDC. ♦ Resolution up to 1024 CPR (counts per révolution) • Output type: TTL compatible • Frequency up to 500 kHz • Rotation spped up to 100.000 rpm * Maximum shaft diameter: 3.175 mm (1/8") ♦ Compliant EU-directive 2011/65/EG (RoHS)
