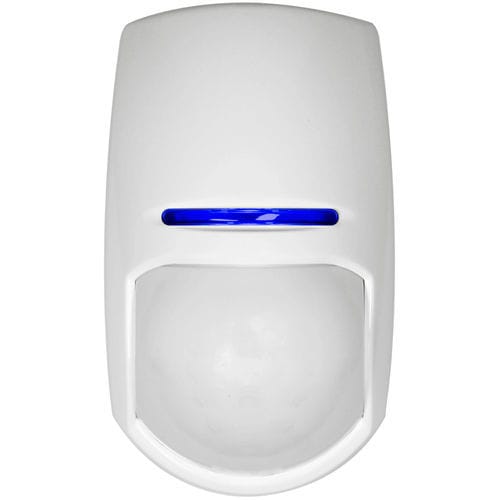

PIR detector KX15DD

digitalpyro-electric3D

Dual element pyro-electric sensor 15m volumetric detection coverage Selectable EOL (End Of Line) resistors Blue Wave Technology Auto sensitivity feature Digital temperature compensation Tamper-proof brackets Sealed optics ABS plastics Complies with EN50131-1 Digital monitors and adjusts to the environment The dual element PIR in the KX15DD digitally monitors the surrounding environment to adjust its sensitivity to changing levels in infra-red light and background temperature. Selectable EOL resistors The KX15DD incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K and tamper values of 5K6, 4K7, 2K2 & 1K catering for most control panels on the market. 15m volumetric detector, great coverage range 15m volumetric detection coverage makes the KX15DD ideal for the protection of rooms and offices. Blue Wave Technology This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT is comprised of several key components: 3D Optics – the new 3D optics system enables perfect focusing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges. Digital temperature compensation – digitally adjusts the detectors sensitivity ensuring performance is maintained. Powerful software – embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.
