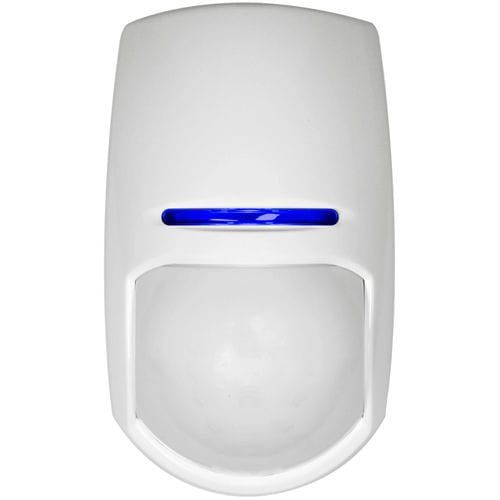

Digital detector KX18DC

pyro-electric3Dprocess

18m digital curtain detection coverage Dual element pyro-electric sensor Selectable EOL (End Of Line) resistors Blue wave technology Auto sensitivity feature Digital temperature compensation Tamper proof brackets included Sealed optics ABS plastics Complies with EN50131-1 The KX18DC has a long narrow coverage pattern that makes it ideal for protecting shop fronts and large windows. With Bluewave technology, auto sensitivity and digital temperature compensation the KX18DC will keep you protected, automatically adjusting the detector to match the environmental conditions such as infra-red noise, light and temperature. 18m Vertical curtain detector 18m Vertical curtain detection coverage. Ideal for protection of large windows areas. Selectable EOL resistors The detectors incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market. Blue wave technology This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of some key components: The new 3D optics system enables perfect focusing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges. Digital temperature compensation digitally adjusts the detectors to ensure performance is maintained. Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity. Auto sensitivity feature Depending on the environment condition,
