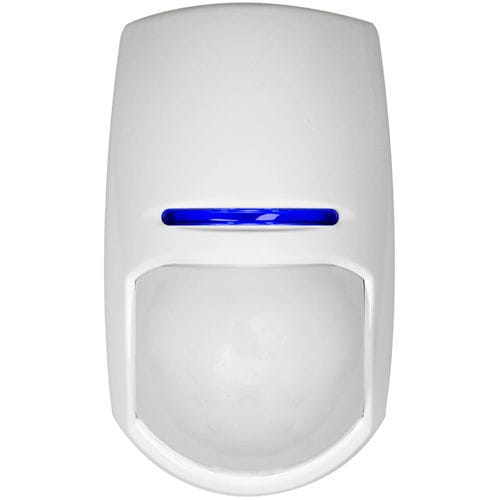

PIR detector KX25LR-WE

pyro-electriclongwireless

Long range coverage pattern Selectable sensitivity Blue Wave Technology Digital temperature compensation technology Sealed optics Electrostatic reducing ABS plastic shell, 3mm Signal Strength Indicator 868MHz FM transceiver technology Two-way wireless technology Grade 2 Complies with EN50131-1 Two Way Wireless Technology Each wireless device on the Enforcer system, including movement detectors is a transmitter and a receiver. The wireless technology used on the Enforcer system holds a significant advantage over one way and some two way wireless products currently available on the market. Signal Strength Indicator (SSI) One of the key advantages of implementing the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time. Sealed optics Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.ABS plastics 3mm polished finish, reduces electrostatic interference on the PIR sensor. Blue wave technology This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of some key components: The new 3D optics system enables perfect focussing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges. Digital temperature compensation digitally adjusts the detector to ensure performance is maintained.
