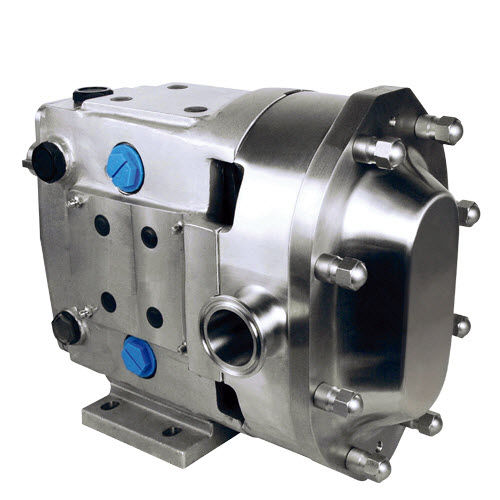

Rotary lobe pump QP Seriesfor food productsnormal primingfor the food and beverage industry
Add to favorites
Compare this product
Characteristics
- Technology
- rotary lobe
- Fluid
- for food products
- Priming
- normal priming
- Domain
- for the food and beverage industry, for the beverage industry, for the pharmaceutical industry, for the wine industry, for hygienic applications, for the cosmetics industry
- Applications
- transfer, process
- Material
- stainless steel
- Fluid specification
- for viscous fluids, for high-viscosity fluids
- Other characteristics
- radial, variable-speed, bi-directional
- Flow
Min.: 7 us gal/min
(26.49788 l/min)Max.: 370 us gal/min
(1,400.60236 l/min)- Pressure
Min.: 10.3 bar
(149.389 psi)Max.: 31 bar
(449.617 psi)
Description
Circumferential piston pumps, interchangeable with other brands
The QP Series is characterized by being Universal - ly interchangeable with other brands in the market, even improving the spare parts quality. Certificates: 3A, EHEDG
Characteristics
- 304 stainless steel seals
- Helical gears
- Flexibility for 4 mounting positions
- Grease fittings on both sides
- Antimicrobial lubricant
- Alloy 88 rotors
- 6 threaded oil plugs with glass peepholes
- Self-cleaning packages in the plugs.
Advantages
- Gearbox made of stainless steel, which makes it more resistant than conventional cast-iron gearboxes.
- The oil-seal is made of stainless steel which prevents oxidation
- High-torque shafts made of one alloy makes them more resistant.
- Self-cleaning gaskets
- 100% interchangeable and compatible with other series in the market
- QP1 and QP2 models can be reconstructed using larger rotors to extend the life of the equipment.
- Remanufacturing program*: Reaconditioned pumps with a one-year warranty.
Catalogs
QP SERIES
8 Pages
