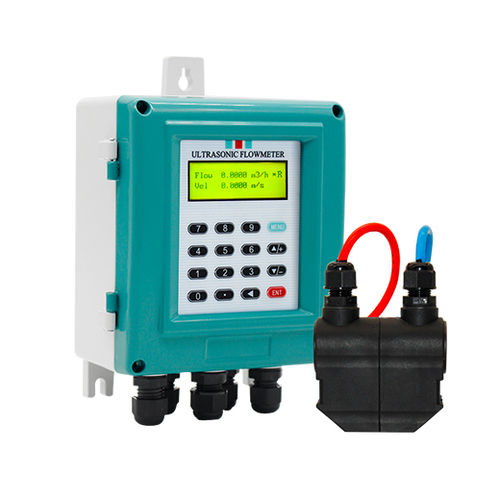

Wall-mounted flow meter

ultrasonicfor liquidsDN100 - 4"

Wall mount type ultrasonic flow meter is designed to measure the fluid velocity of liquid within a closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non-fouling operation and easy installation. Wall mount type ultrasonic flow meter principle working: The flow meter operates by alternately transmitting and receiving a frequency modulated burst of sound energy between the two transducers and measuring the transit time that it takes for sound to travel between the two transducers. The difference in the transit time measured is directly and exactly related to the velocity of the liquid in the pipe. Wall Mount Type Ultrasonic Flow Meter Advantages and Disadvantages 1: Highest zero point stability and accurate measurement of even the lowest flow velocities 2: Highest precision on the basis of individually calibrated ultrasonic transducers and transmitters 3: One flow meter for all applications 4: No maintenance efforts 5: Highest process safety Wall mount type ultrasonic flow meter is high reliability of flow meter, widely used in petroleum, chemical industry, food ,electricity, water supply and drainage, etc. Wall mount type ultrasonic flow meter installation requirements The state of the pipeline for measuring the flow will greatly affect the measurement accuracy, the detector installation location should be selected in a place that meets the following conditions: 1. It must be ensured that the straight pipe section where the probe is installed is: 10D on the upstream side(D is the pipe diameter), 5D or more on the downstream side, and there must be no factors that disturb the fluid(such as pumps,valves, throttles, etc.)
