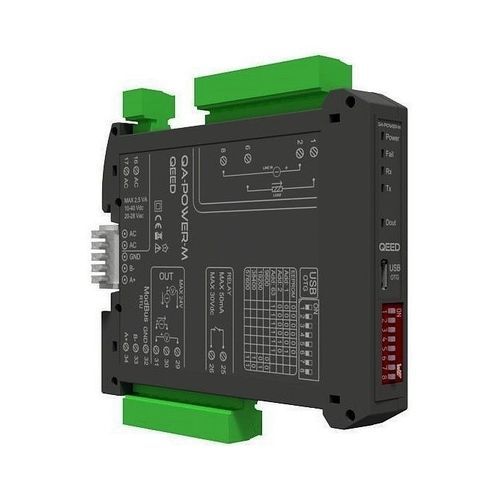

Single-phase electric energy meter QA-POWER-M

DIN railRS-485Modbus

Single-phase network analyser, voltage-current converter 1000 VDC/600 VAC and 0-10 A AC/DC. Measurements: Irms, Vrms, Watt, Var, Frequency, Cosφ, Energy, THD. Min and max values of all the RMS measurements. USB configurable, DIN rail mounting, input with 4 kV galvanic isolation, universal power supply AC/DC, programmable alarm contact, RS485 Modbus and analogue output. Data logging function which saves data to a USB pen drive, data are downloaded in .csv format (and can be imported directly into Excel) with date and time (built-in RTC Real Time Clock).
