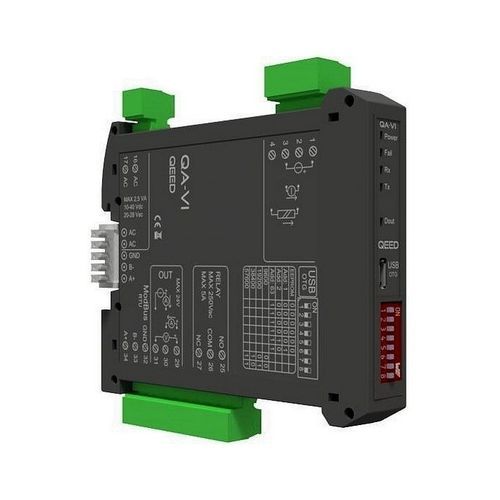

DIN rail signal isolator-converter QA-VI

galvanically-isolatedRS485

4-way ISOLATED VOLTAGE/CURRENT CONVERTER, configuration via USB, DIN rail mounting, universal power supply AC/DC, programmable relay alarm contact, RS485 Modbus serial output. Data can be logged through the USB port and stored on a pen drive. They can be downloaded and imported into Excel, including date and time (built-in RTC Real Time Clock). VOLTAGE - 0…10 V, programmable, input impedance 100 kOhm, resolution 1mV; CURRENT - Up to 20 mA, programmable, input impedance 20 Ohm, MAX resolution 2 µA. CURRENT - 0…20 mA, programmable, maximum load resistance 600 ohm. VOLTAGE - 0…10V, programmable, minimum load resistance 2 kOhm. CONTACT ALARM - 5A 230 VAC relay, configurable using FACILE QA-VI software. RS485 MODBUS - RS485 serial bus connection on the bottom of module by adapter (optional) or on terminals. Front dip-switch for manual setting of address and baudrate.
