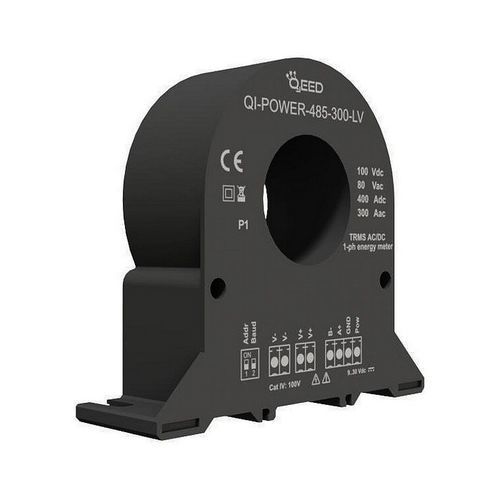

Single-phase electric energy meter QI-POWER-485-300-LVDIN railRS-485
Add to favorites
Compare this product
Characteristics
- Type
- single-phase
- Assembly
- DIN rail
- Other characteristics
- RS-485
- Voltage
Max.: 100 V
Min.: 0 V
- Primary current
Max.: 400 A
Min.: 0 A
Description
The QI-POWER-485-300-LV is the LOW VOLTAGE version of the QI-POWER-485-300 single-phase power meter which is able to measure currents up to 300 A RMS/400 A DC and voltage up to 80 VAC/100 VDC.
The information provided on the RS485 output is:
-Irms, Vrms, Ipk, Vpk
-Watt
-Var
-Va
-Frequency
-Cosφ
-Energy (bidirectional)
-THD
-The device is fully configurable using the free FACILE QI-POWER-485 software
Other features:
-Ready for DIN rail mounting
-4kV galvanic isolation for voltage input
-Accuracy: 0.5% FS
-RMS or DC measurement
-Variable frequency measurement (DC up to 400 Hz)
-RS485 integrated
-OEM design (low cost)
-Boot loader for updating firmware
