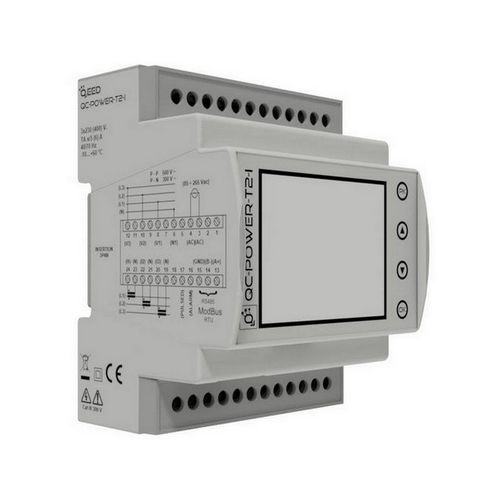

Three-phase electric energy meter QC-POWER-T2-I

digital outputRS-485programmable

Three-phase AC / DC power meter with secondary at 5 A / Rogowski. Graphic display 128 x 64 65536 colors. RS485 Modbus. Optional: Ethernet, Wi-Fi and Bluetooth. AVAILABLE FROM 4Q 2020. Main features: Power supply: 85 Vac – 265 Vac Digital output: N°2 MOSFET OUTPUT: N°1 ALARM OUTPUT ON THRESHOLD; N°1 OUTPUT programmable optomos contact. Absorption: < 2 W Protection index: Frontal IP54 / Enclosure IP20 Working temperature: -10 °C…+60 °C Storage temperature: -20 °C…+85 °C Humidity: 10…90% not condensing Altitude: Up to 2000m s.l.m. Mounting: On DIN rail PRECISIONE (@ 25 °C, 50 Hz): Voltage (Un: 230/400 V): ± 0,5% RDG ( 10…100% Un ) Current (In = 5 A): ± 0,5% RDG (5…100% In ) Frequency: ± 0,1 Hz from 40 to 70 Hz; Power: ACTIVE: ± 0,5 % RDG; REACTIVE: ± 0,5% RDG ENERGY: ACTIVE: Class C according to EN 50470-1/3 or Class 0,5 S according to EN 62053-22 REACTIVE: Class 0,5 S according to EN 62053-24
