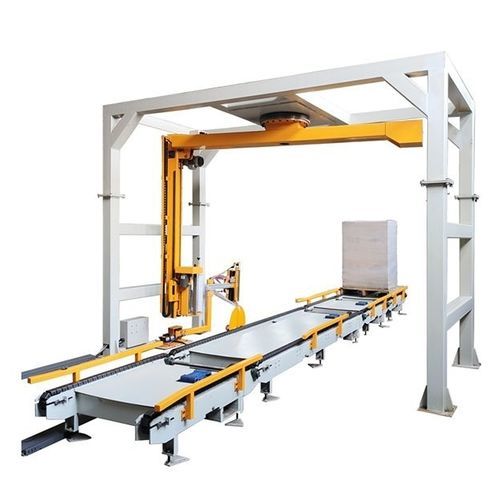

Rotary arm wrapping machine LR1800F
automaticpalletwith conveyor

Rotary arm wrapping machine - LR1800F - Qingdao Ausense Packing Equipment Co., Ltd. - automatic / pallet / with conveyor
Rotary arm wrapping machine - LR1800F - Qingdao Ausense Packing Equipment Co., Ltd. - automatic / pallet / with conveyor
Add to favorites
Compare this product


Characteristics

Type
rotary arm
Operating mode
automatic
Product applications
pallet
Other characteristics
stretch film, with conveyor
Height

3,500 mm
(138 in)

Width

3,200 mm
(126 in)

Length

4,200 mm
(165 in)

Maximum wrapping height

Min.: 500 mm
(19.69 in)

Max.: 1,800 mm
(70.87 in)

Maximum pallet length

Min.: 500 mm
(19.69 in)

Max.: 1,100 mm
(43.31 in)

Maximum pallet width

Min.: 500 mm
(19.69 in)

Max.: 1,200 mm
(47.24 in)

Voltage

380 V

Power

1.5 kW
(2.04 hp)

Capacity

Min.: 35 p/h

Max.: 45 p/h

Description

There are two models of LR1800F arm rotating pallet wrapping machine, one is a single version and the other is used with conveyors. Two models are suitable for use when the product is relatively large and heavy, and it is inconvenient to use the pallet wrapping machine. The machine drives the wrapping film to wrap around the goods through the arm rotation, which effectively avoids the danger of heavy products. Performance characteristics: 1.PLC control, speed adjustable 2.Suitable for wrapping larger and heavier products 3.The wrapping layers and the wrapping tension can be adjusted 4.It has the function of automatically sensing obstacles to effectively avoid personal injury

VIDEO

Catalogs

LR1800F
LR1800F
2 Pages
