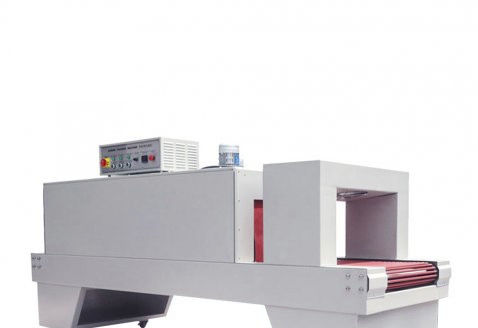

Electric shrink tunnel BSE6040A

hot air

BSE6040A is a heat shrink tunnel for PE film. Features: • The tunnel is lengthened, and the conveying speed and the tunnel temperature can be adjusted according to the thickness and size of the PE film. • BSE6040A adopts imported dual-transport fan motor, so that the hot air in the furnace cavity is evenly distributed, and the effect after shrinkage is more beautiful. • The solid steel rod is used to cover the imported silicone tube, and the chain-rod conveying is durable. Conveyor chains of different materials can also be used according to different products. • The frequency converter controls the transmission speed with stepless speed regulation. • Ultra-large air volume cooling system, the product is quickly cooled and shaped after heat shrinking. • The rear end of the shrink tunnel can be equipped with an aluminum roller table, and the product will not fall to the ground after packaging. • BSE6040AM can add dense shaft function, designed for products with smaller packaging volume Voltage 380V 50HZ Packing speed（pc/min） 25-30 Tunnel size（mm） 1800*600*400 Max packing size（mm） 1300*400*300 temperature（℃） 0-400 Machine size（mm） 2800*900*1690 Table height（mm） 850±50 Net weight（kg） 600 Shrink tunnel PE
