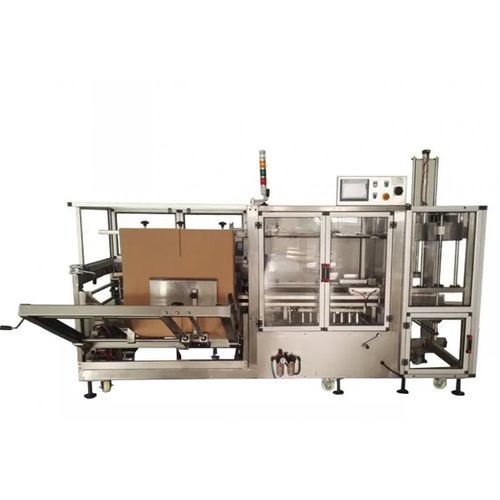

Automatic cardboard box/case erector SDW-K20TK

adhesive tape

New Condition Stainless Steel Carton Erector/case erector characteristics 1.The storage box mechanism: Can accommodate 50 cartons (depending on the carton thickness), and can be added at any time 2.Adopt Nordson hot melter. Famous brand in the world and have engineer available service all over the world. 3.Manually adjust to change the carton sizes(finishing in 2-3minutes). 4.Advanced photoelectricity induction control system. 5.Rationally designed, the forming, folding and sealing process are accomplished simultaneously. 6.Cutter Safety system to prevent hands form stabbed by the cutter. 7.Equipped with PLC(Siemens) system, saving labor and easy to operate. • Voltage : 220V/50Hz, single phase • Air pressure : 6kg/cm2 • Gas consumption : 200L/min • Packing carton size : min.carton size:L450*W400*H400mm max.cartons sizeL250*W150*H100mm • Open carton type : Vertical & hot melt • Single production effeciency : >95% • Cartob loss rate : 1‰ • Machine dimension : L2500*W1950*H1500mm • Machine weight : 550kg
