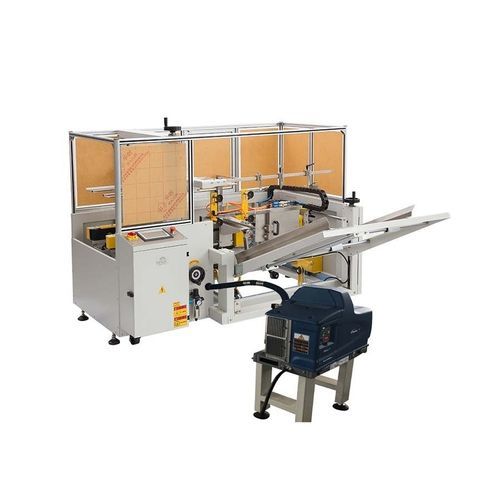

Hot-melt glue case erector YPK4012

automaticbottom sealer

Hot melt glue carton forming machine/case erector with bottom sealer features 1.Easy operation,machine can be used individually and combined with the packaging line. 2.The storage box mechanism: Can accommodate 50 cartons (depending on the carton thichness), and can be added at any time 3.Adopt Nordson hot melter. 4.Manually adjust to change the carton sizes(finishing in 2-3minutes). 5.Advanced photoelectricity induction control system. 6.Rationally designed, the forming, folding and sealing process are accomplished simultaneously. 7.Equipped with PLC(Siemens) system, saving labor and easy to operate. Voltage 220 V 60HZ 400W Air pressure 6 kg/cm² Gas consumption 200 L/min Machine shape L2500mm×W1950mm×H1500mm Machine weight 550kg Carton size L11.875 "* W 10.125"H5.5 "~L16 "*W11 "*H12.875 " Single production efficiency ≥95% Carton loss rate 1 % Open carton type Vertical & hot melt
