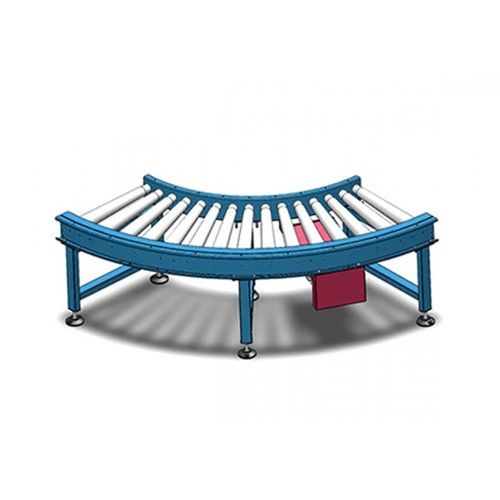

Roller conveyor

chainhorizontalcurved

Roller: 50*1.5mm double chain roller, both ends of the bearing for maintenance free deep groove ball bearing, tube material for carbon steel galvanized, outsourcing hard plastic cone sleeve. Frame: laser cutting/welding forming with 3mm steel plate, size: 145*40mm, structure as shown below: Supporting leg: it adopts customized profile welding type, which has the advantages of firmness and good stability. Connect the frame with the connecting plate with bolts, adjust the connection between the foot base and the ground, and adjust the height of the conveying surface 50mm, as shown in the following figure: Drive device: motor drive. Surface coating: steel wire brush and sandpaper are used to remove rust on the frame, support legs, guide parts, accessories and other parts, and the grease is removed by acid washing. After phosphating, the surface is sprayed with epoxy powder and baked. Spraying color shall be specified by party a's color card. • Double sprocket roller (08B-14Z)/φ50×1.5mm • Sprocket material Plastic/Q235/304 • Roller tube material Q235/201/304 • Steel taper tube or plastic taper coat • Steel side profile 145×40×3mm/ Aluminum profile 120×40mm • R series gear motor/24V power roller
