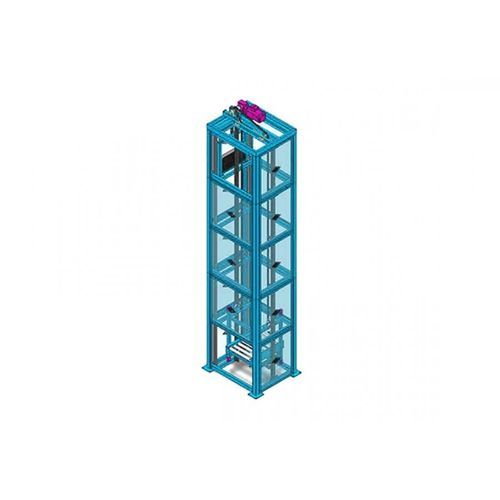

Electric elevator

platformcolumn

The working principle of the reciprocating elevator is that the driving device drives the chain through the sprocket, and the two ends of the chain are respectively connected with the loading table and the counterweight component, and the positive and negative rotation of the motor can realize the lifting and lowering of the loading table. One. main mechanical structure and features： Body: cold rolled steel plate. Outer sealing frame: wire mesh sealing frame is adopted. Loading platform: after cold rolling of steel plate, it is welded into a whole. Loading conveyor: multi - chock roller table machine, structure as mentioned above. Surface coating: steel wire brush and sandpaper are used to remove rust, acid wash to remove grease. After phosphating, the surface is sprayed with epoxy powder and baked. The thickness of resin is between 60 m and 90 m. Spraying color shall be specified by party a's color card.
