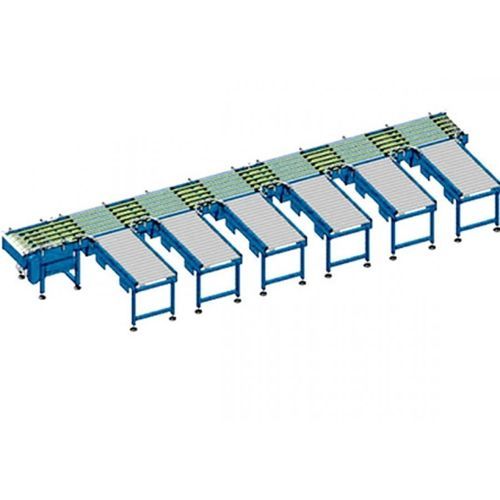

Belt conveyor

horizontalsortingelectric drive

Narrow-band sorting machine adopts combined structure, which is mainly composed of driving section, middle section and tail section. Each part can form an independent assembly unit, and the middle section can be composed of several sections according to the requirement of conveying length. The narrow belt sorter is mainly composed of two systems: narrow belt conveyor and jacking load shifting system. The conveyor is placed on the narrow belt and moves with the narrow belt. When it reaches the position to be sorted, the jacking load shifting machine works. One. main mechanical structure and features: Belt: the belt adopts PVC low friction belt with hot melt interface, with low noise; The middle idler adopts groove form, which is convenient for installation and disassembly of narrow band. The narrow belt is automatically tensioned by an independent cylinder, and the tensioning force is adjusted by a filter pressure-reducing valve. A one-way valve is installed on the tensioning cylinder, which has the pressure-maintaining capacity and can prevent the belt from relaxing after air break and running off after starting. Body: hot rolled steel Q235/t4 is adopted for the frame, and ultra high molecular polyethylene (UHWMPE) is adopted for the belt tow.
