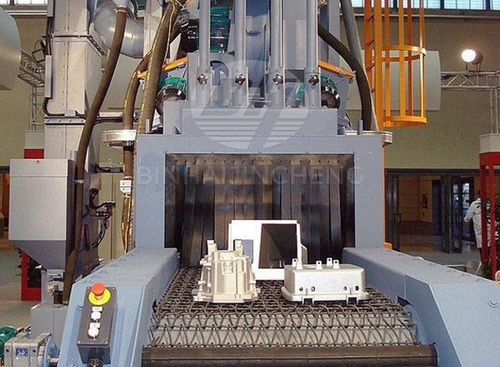

Wire mesh belt conveyor shot blasting machine QWD series

for metal

Wire Mesh Shot Blasting Machine QWD Series Wire Mesh Belt Shot Blasting Machine is a new type of equipment that is independently developed by our company. In terms of cleaning equipment classification, it should belong to Q69 Series Pass-Through Type Shot Blasting Machine. Mainly used for the surface shot blasting machine of thin-walled castings; iron or aluminum alloy castings which have the feature of thin-walled and fragile; ceramics and other small parts, and also for strengthening the work-pieces. Good continuity, high cleaning efficiency, small deformation, no need for the foundation for the machine, etc. it can be used alone or in combination with the production line. Features of Wire Mesh Shot Blasting Machine Shot Blasting cleaning room: The shot blasting cleaning room is composed of sidewalls, access doors, top walls, Mn13 protective plate. The shell of the shot blasting room is a steel plate welded structure, which is a sealed and spacious operation space for shot blasting. 8 sets of QBH037 type Impeller Head assembly are installed on the outer wall of the shot blasting room. The Rolled Mn13 protective plate in the cleaning room is tightly pressed with hexagon nuts for easy disassembly and replacement. Rolled Mn13 protective plate has good toughness and obvious surface work hardening characteristics. (Under the action of strong impact load or extrusion load, the stressed surface is hardened, and the surface hardness can be significantly improved from the initial HB170 level to above HB550 level, while the core still maintains good impact toughness). The work-piece is transported through the shot blasting room by the mesh belt.
