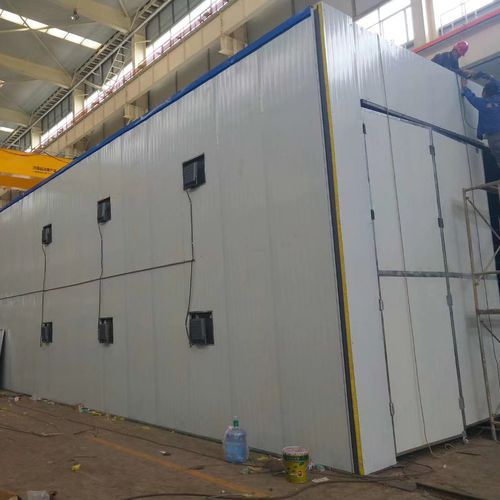

Pressure blast room

automatic

Sand blasting room is special equipment designed to meet specific process requirements. Through shot blast cleaning, the dirt, oxide scale, welding slag and waste paint on the surface of the complex workpiece can be removed. Feature: Wall & Ceiling * Panels 75 mm thick, with foam in the middle and color steel on both sides Basement System * Metal Pedestal(Galvanized), with Filter Tray × 3rows & Ramps a couple * Grid Plates (Galvanized) × 3rows *Embossed plates (Galvanized) × 2rows Heating System * Diesel Burner (Italy RIELLO, RG5S)* 2unit * Heating Exchanger (Stainless Steel material)* 2unit * 5~10 minutes reaching the baking temperature 60~80 degree Celsius *Cabinet (rock-wool insulation) * 2unit; Air Ducts * 4pcs Filter System * Primary Filter* 1set, filtering rate > 83% *Air-Intake Filter* 1set, filtering rate > 97% * Air-Exhaust Filter* 1set, filtering rate > 70% Air System * Air-Intake Fans* 4unit, Centrifugal Fans with 7.5 KW motor * Air-Exhaust Fan* 2unit, Centrifugal Fans with 7.5 KW motor * Air velocity 0.30 m/s * Cabinet for the fans* 2unit, and Air Ducts* 6pcs, and Air Damper (electric)* 2unit Illumination * Ceiling Lights * 64pcs, 36w each, with Light Fixtures * Side Lights* 64pcs, 36w each, with Light Fixtures Control Panel * ×1unit, including Spray Switch, Baking Switch, Light Switch, Emergency Stop, etc. Included * All Hardware, Fasteners, and Sealants More details please contact:ping@qdbhmachinery.com Or call me+86 18954297941
