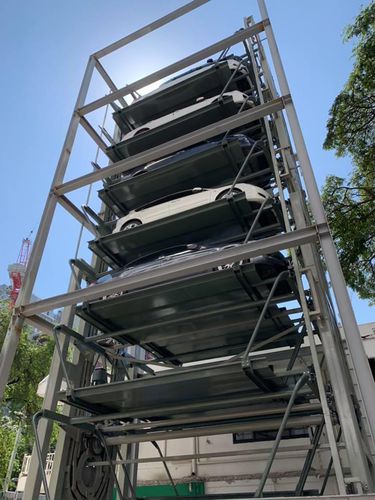

Rotating parking platform PCX16D

multi-level

Motor drives the transmission mechanism with reducer; parking plates are installed with regular intervals on the traction chain. When the motor starts,loading plates rotates with the traction chain to realize parking and retrieving cars. You may drive the car to the empty loading plate, lock the car, and then press the operation button. Another empty parking berth would automatically moves down to the entrance for the next vehicle. When retrieving the vehicle, simply press the parking berth number or swipe the parking card, the system will automatically choose the shortest way to move the vehicle down to the entrance, then the driver can drive the vehicle out. PRODUCT FEATURES 1. The land-utilizing efficiency is high. Each system covers only 35 sq., providing up to 16 parking berths. 2. It can be installed independently or between buildings or to make a tower system.It can be easily installed in empty spaces in residential areas or besides commercial buildings. 3. Vertical carousel system is designed with the transmission mechanism that saves 1/2 power and increases 200% efficiency. 4. The control system is PLC programmable controller, which realized highly automated parking and parking retrieving. And it is easily to inverse rotary to retrieve the vehicles. It can be designed with IC card charging system for easy parking operation. The button panel shows the right transferring direction with the loading plate and guiding the driver to park and retrieve the vehicles.
