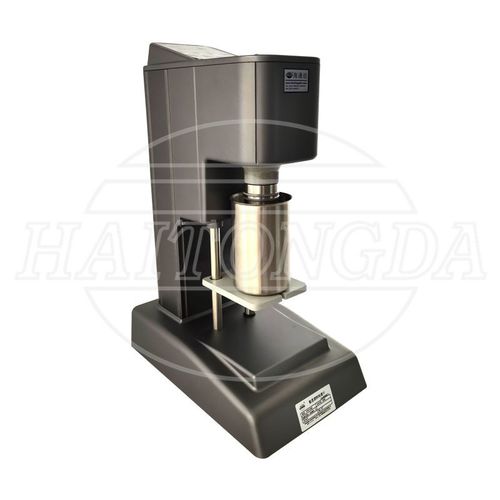

Rotational viscometer HTD13285

laboratoryprocessautomatic

Model HTD13285 Digital rotational viscometer is a type of viscosimeter newly designed by our company. The viscometer is designed with embedded configuration，It is equipped with a high-precision Angle sensor, driven by a stepper motor, and the speed is more stable and accurate；The buttons on the panel are easy to operate，High resolution LCD screen can display the float rotation Angle and stirring speed in real time. This product can be widely used in petroleum, chemical, food, medicine, cosmetics and other industries. The introduction of the working principle：Put the slurry cup filled with liquid on the tray，The liquid enters the annular space (shear gap) formed between the external outer sleeve and the floater of the viscometer. When the motor drives the outer sleeve to rotate，The outer sleeve in the liquid is subject to the force applied back to viscous resistance，the force can produce torque to the floater in the outer sleeve through the liquid under test in the annular space. The floater is attached to the Angle sensor，when the torque is balanced with the viscous resistance，the Angle sensor will detect the Angle of floater rotation. Due to the Angle of the floater rotation is directly proportional to the viscous resistance of the outer sleeve， the sensor's Angle value is multiplied by a specific coefficient to get the final viscosity，and the Angle value of the sensor is also displayed on the LCD screen for reading.
