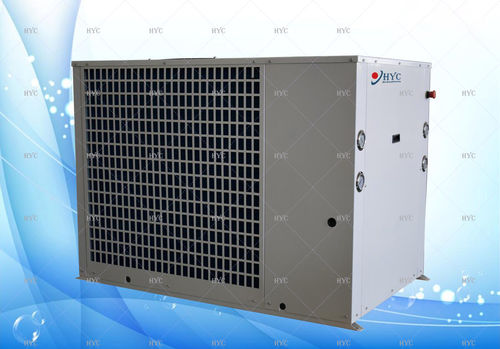

Water chiller

miniair-cooled

Related introduction Cooling capacity: 8kw to 50kw STRUCTURE Panels and base frame are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents. HERMETIC COMPRESSOR The units use high efficiency, hermetically sealed, compressors, oil return lubrication and rubber vibration damper. The thermal overload cut-out, phase sequence relay and crankcase heater are integrated as the security protection to enhance reliability and performance. AXIAL FAN External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille. EVAPORATOR Evaporator built with high efficiency plate type heat exchanger, factory insulated with flexible close cell material. CONDENSER Condenser built with seamless internal screw thread copper tubes mechanically expanded into blue wave hydrophilic aluminum fins.
