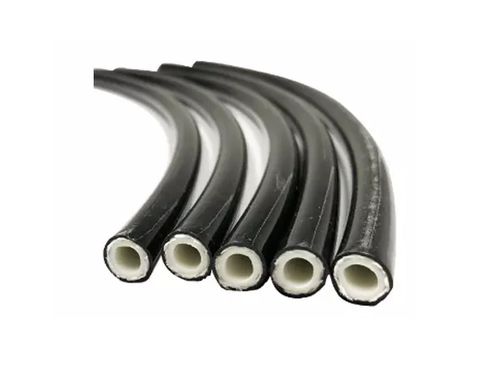

Hydraulic hose SAE 100 R8 elastomerthermoplasticabrasion-resistant
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- elastomer, thermoplastic
- Other characteristics
- abrasion-resistant, weather-resistant
- Inner diameter
Max.: 13.5 mm
(0.531 in)Min.: 4.6 mm
(0.181 in)- Outer diameter
Max.: 24.6 mm
(0.969 in)Min.: 14.6 mm
(0.575 in)- Pressure
3,550 psi, 4,060 psi, 5,075 psi
- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Short Description:
SAE 100 R8 STANDARD
INNER TUBE: Oil resistant thermoplastic elastomer
REINFORCEMENT: Two layer fiber braided
COVER: Thermoplastic elastomer with high ozone, weather and abrasion resistance
WORKING TEMPERATURE: From -40℃ up to +100℃
