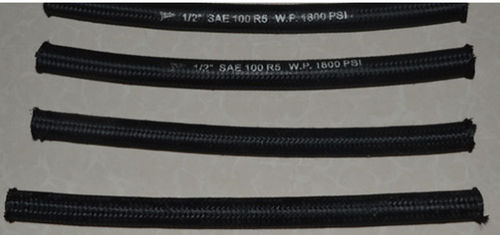

Hydraulic hose SAE 100 R5synthetic rubbersteeloil-resistant
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- synthetic rubber, steel
- Other characteristics
- oil-resistant, weather-resistant
- Inner diameter
Min.: 4.8 mm
(0.189 in)Max.: 76.2 mm
(3 in)- Outer diameter
Min.: 13.7 mm
(0.539 in)Max.: 91.7 mm
(3.61 in)- Pressure
Min.: 203 psi
Max.: 3,045 psi
- Temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
Short Description:
SAE 100 R5 STANDARD
INNER TUBE: Oil resistant synthetic rubber
REINFORCEMENT: One steel wire braided
COVER: Oil and weather resistant synthetic rubber impregnated cotton braid
WORKING TEMPERATURE: From -40℃ up to +100℃
