Surface grinding machine TYJT-G1

glassfine

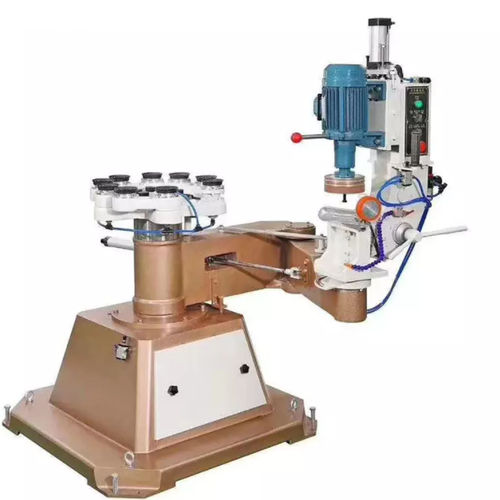

Irregular Shape/Round Shape/Special Glass Shape Grinding Machine 1.Easy to operate 2. Waterproof 3. Stable working platform 4. Small body, space saving 5. Customized color Description Shaped glass edging machine is suitable for processing round, oval and irregular shaped glass. It could make out the round edge, duck edge, square edge and bevel edge. The machine base is made of integral castings, and other structures are made of high-strength cast iron. The overall structure ensures the stability of the working. The working platform adopts a vacuum pump to absorb the glass, the motor drives the working platform and then makes the glass sheet to rotate and be polished. What’s more, the working speed could be adjusted according to the demand. This machine can be equipped with cylinders, which can be used for rough grinding, fine grinding and polishing of simple shapes of glass. Features Easy to operate Waterproof Stable working platform Small body, space saving Customized color Technical Parameters TYJT-G1 Space 1200*1200*1800mm Net Weight 1000kg Glass Processing Thickness 3-25mm Angle 0-15 degree Max Bevel Surface Width 35mm Rotary diameter of glass 100-2100mm Speed 0.5-2.5r/min Voltage 380V, 50HZ, 3 Phrase Power 3kw
