Chain conveyor AT series
beltweighingchain drive

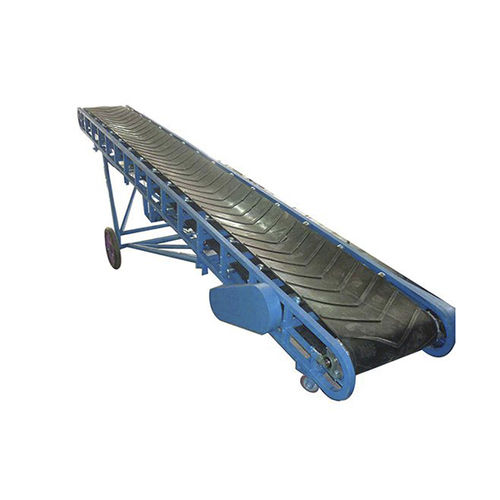

Chain conveyor - AT series - Qinyang Aotian Machinery Manufacturing Co., Ltd. - belt / weighing / chain drive
Chain conveyor - AT series - Qinyang Aotian Machinery Manufacturing Co., Ltd. - belt / weighing / chain drive
Add to favorites
Compare this product


Characteristics

Technology
belt, chain
Function
weighing
Drive mechanism
chain drive, automatic
Transported product
for bulk materials
Speed

Min.: 0 mm/min
(0 in/s)

Max.: 12,000 mm/min
(7.87 in/s)

Bulk throughput

Min.: 2.5 t/h
(1.531 lb/s)

Max.: 17.91 t/h
(10.968 lb/s)

Description

Features:   Mainly used for conveying loose, bundle of pulp board, or for a variety of waste paper or other materials, can do level or less than 30°slope transportation.   Use special chain drive a stamping trough board conveying material, has a large transmission capacity, motor power small, wear small, reliable operation, high efficiency, etc.   Technical indicators:   1. Accurate measurement: ≤±0.5%   2. Precise control: ≤±1%   3. Speed measurement range: 10:1   4. Working mode: continuous   Main features:   1, All steel frame structure, good system stability.   2. Special reducer ensures long-term stable operation.   3, The unique belt tension and automatic correction function, can make the scale body long-term operation without maintenance.   4. The scale body is equipped with belt inside and outside cleaning device to effectively overcome the adhesion of attached materials.   5. Double sensors (balance beam or bellows) are adopted for direct weighing structure, which successfully solves the errors caused by heavy weight of materials and weighing of lever, greatly improving the measurement accuracy.   6. Adopt digital acquisition module, with effective resolution up to 1 million; Collection rate: 50 times/second; Annual drift less than 50PPM; Temperature drift less than 50PPM   7. Belt scale speed measurement adopts gear speed measurement or rotary encoder speed measurement.
