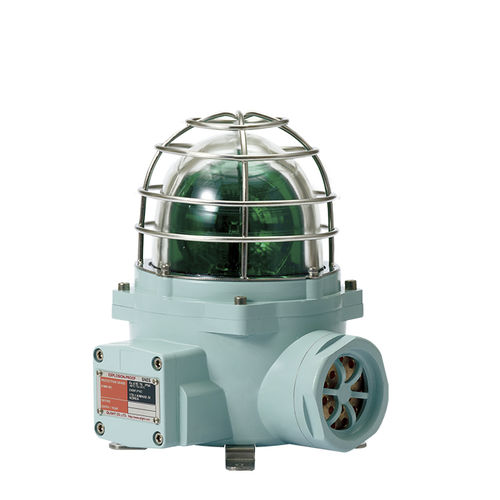

Alarm sounder with signal light SNESLR

with LED beaconexplosion-proofIP66

• Light weight and compact explosion proof signal beacon / light with siren buzzer • Aluminum housing provides excellent durability • Fully enclosed structure with protection rating of IP66 • Excellent omni-directional visibility with LED light collecting system and special multifaceted reflector • Revolving speed : 120-140RPM • Integrated housing and terminal box model • Sound type and sound volume : Siren buzzer- Max. 105dB at 1m/ 7 sounds buzzer, Max. 95dB at 1m • User selected built-in buzzer with 7 sound patterns available upon request • Housing standard color : MUNSELL No. 7.5BG 7/2 • Cable entry : 1/2″ NPT • Materials : Lens-Tempered glass, Inner lens-PC, housing-Al, Protection cage-STS316L, Reflector-PC • Certificates : IECEx, ATEX, NEPSI, KCs, CCS, TIIS, CCC • Protection rating : IECEx - Ex db ⅡC T6 Gb, Ex db op is ⅡC T6 Gb (with LED) ATEX - Ⅱ2G Ex db ⅡC T6 Gb, Ex db op is ⅡC T6 Gb (with LED) KCs - Ex d ⅡB+H2 IP66 T6 NEPSI, CCC - Ex d ⅡC T6 Gb TIIS - ⅡC T6 Gb • Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C, -20℃ ≤ Tamb ≤ +55℃ (TIIS)
