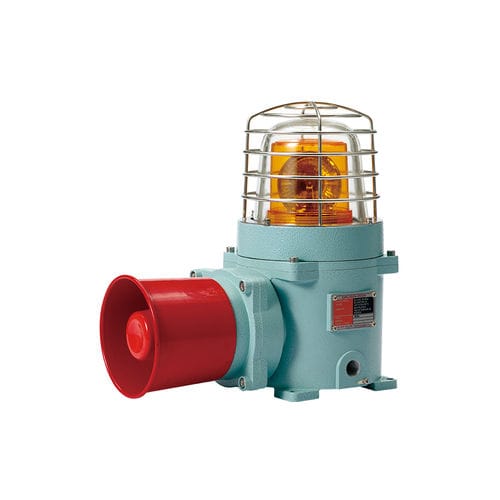

Rotating beacon SESALR
LED24 Vdc12 Vdc

rotating beacon
rotating beacon
Add to favorites
Compare this product


Characteristics

Type
rotating
Technology
LED
Voltage level
24 Vdc, 12 Vdc, 230VAC, 110VAC, 220VAC
Protection level
IP66, explosion-proof, ATEX, IECEx
Other characteristics
with audio signal

Description

Large explosion proof warning light and electric horn combinations A variety of light sources and sound selections to fit your sophisticated application needs Aluminum housing provides excellent durability Fully enclosed structure with protection rating of IP66 Integrated housing and terminal box model Excellent omni-directional visibility with LED light collecting system and special multifaceted reflector Revolving speed : 120-140RPM Sound volume : Max. 118dB at 1m(Volume adjustable) Standard housing color : MUNSELL No. 7.5BG 7/2 Cable entry : 1/2″ NPT Materials : Lens-Tempered glass, Filter-PC, Housing-Al, Protection cage-STS316L, Reflector-PC Certificates : IECEx, ATEX, NEPSI, KIMM, KOSHA, ABS, CCS, KR Protection rating : IECEx - Ex dⅡC T6 Gb, IP66 ATEX - Ⅱ2G Ex dⅡC T6, IP66 NEPSI, KIMM, KOSHA - Ex dⅡC T6, IP66 Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
