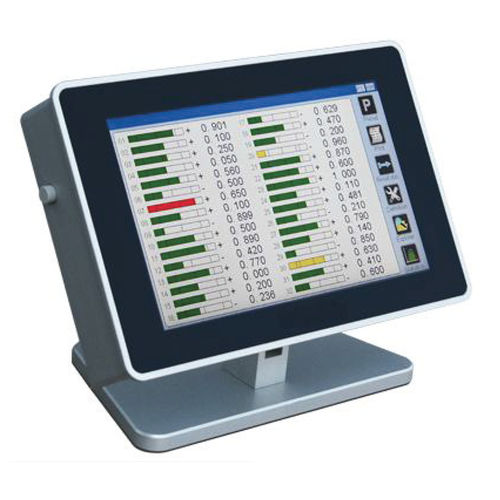

The digi 400plus – compact display and control unit – is equipped with a 7″ colour display and touchscreen function, which allows the easy configuration of the device due to its icon workspace and drop-down menus. The measurement is presented in a bar graph, with up to 32 measurement results displayed at the same time. Variety of keyboards (alphanumeric, numeric and trigonometric functions) allow the input of workpiece IDs, IP addresses, calculation formulas. An automatic test system ensures the correct input in the correct format, and prevents typing errors. The front side is completely lined with polyester film and is thus protected against splashes, e.g. from oil. The connections are directed downwards to prevent the ingress of liquids. The digi 400plus runs with its own operating system (not Windows CE or similar), which enables higher display performance, for example with regard to the number of the measuring sensor readings.
Technical data:
Glare-free colour display 7″ (W x H) 155 x 94 mm
Industry-standard touchscreen
Simultaneous display of 32 measured values in the form of a bar graph
Connection of up to 99 measuring sensors (MBus via 1 cable) Hirt, Tesa, Mahr, Solartron, Heidenhain, Magnescale, Mitutoyo, Sylvac…, (digital gauges also possible)
USB interface for CSV or QDAS export
128 programs and 30,000 measured values can be stored
Free formula editor with trigonometry
Direct automation of a machine
Automation of measurements via an external system (SPS).
Variety of keyboards (alphanumeric, numeric and trigonometric functions) allow the input of workpiece IDs, IP addresses, calculation formulas, Robust aluminium housing, usable in manufacturing
