for the implementation of traceable confirmation and acceptance tests on contour-measurement systems according to Directives VDI/VDE 2629, incl. quality test certificate and recording unit.

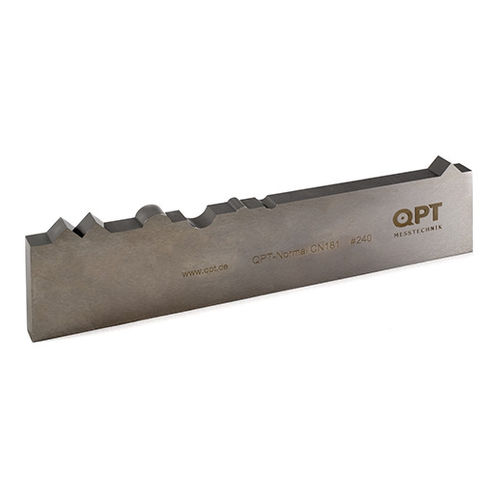

Recording for CN180/CN181 for 0° and 20° inclination
100.016_qpt_Konturennormal-01
100.016_qpt_Konturennormal-02
very low form deviation of the elements
2x 90° angle convex
1x 90° angle concave
2x radius convex
2x radius concave
+ gap (X) and height dimension (Z)
Recording unit for measurement in 0° and 20° inclination, within the scope of delivery
