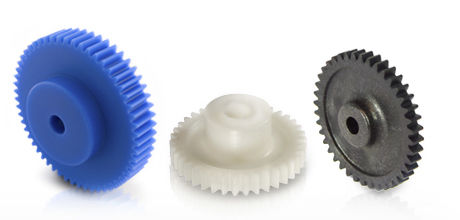

Spur gear KPU2-30J10

straight-toothedhubplastic

Module 2, 30 Tooth Nylon Spur Gear with Stainless Steel Core and 10mm Finished Bore Qty Range1 – 45 – 910+ Price/Unit$273.47$268.57Request For Quote Product Specifications (Dimensions shown are for reference only, please refer to our catalog page for precise technical data.) MaterialNylon/Stainless Core No. Of Teeth30 Hub StyleWith Hub / Set Screw / Keyway Quality ClassCommercial / Machined Bore Size10.00 mm Face Width20.00 mm Pitch Dia.60.00 mm Pressure Angle(deg)20 Degree Hub Dia.35.00 mm Module (pitch)2.00 Definition of Holding Strength and Safety Factor The holding strength between the metal core and the molded material is a function of the contact area. The relationship between the core outside diameter and the radial strength (torque) is shown on the left, while the relationship between the core diameter and the resistant thrust force is shown on the right.
