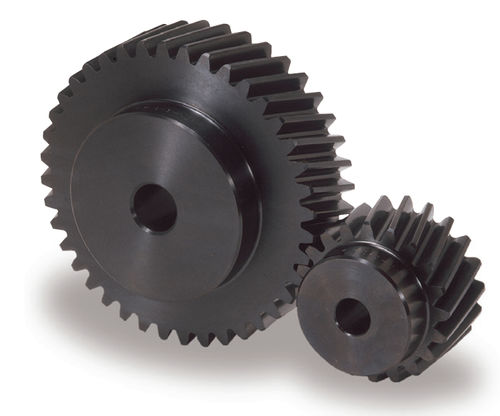

Spur gear KSH2-15Lhelicalhub
Add to favorites
Compare this product
Characteristics
- Type
- spur
- Teeth
- helical
- Configuration
- hub
Description
Module 2, 15 Tooth, Left Handed Mild Steel Helical Gear
Qty Range1 – 910 – 2425 – 4950 – 99100+
Price/Unit$19.37$18.56$17.75$16.95Request For Quote
Lead Time2 wks2 wks3 wks3 wks
Product Specifications
(Dimensions shown are for reference only, please refer to our catalog page for precise technical data.)
Module ( Normal )2
Quality ClassCommercial / Steel
Helix Angle & Hand15? Left Hand
No. Of Teeth15
Bore Size (d)12.00 mm
Face Width (S)25.00
Outside Dia. (D)35.00
Pressure Angle20.0 °
Pitch Dia. (P.D.)31.00 PITCH DIAMETER
Hub Projection (l)10.00
