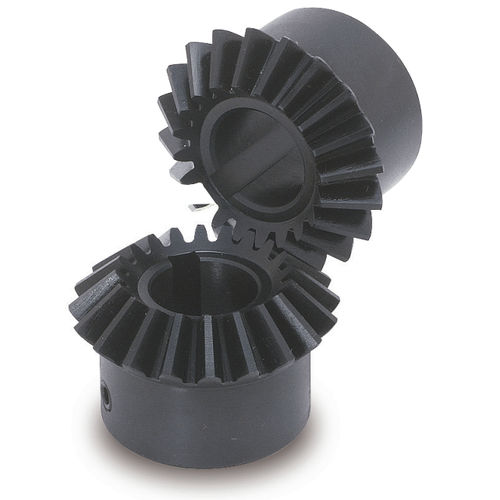

Bevel gear KSMA3-30straight-toothedhubsteel
Add to favorites
Compare this product
Characteristics
- Type
- bevel
- Teeth
- straight-toothed
- Configuration
- hub
- Material
- steel
Description
Module 3, 30 Tooth Mild Steel Miter Gear with Finished Bore
Qty Range1 – 910 – 2425 – 4950 – 99100+
Price/Unit$81.32$78.08$74.85$71.67Request For Quote
Lead Time2 wks2 wks3 wks3 wks
Product Specifications
(Dimensions shown are for reference only, please refer to our catalog page for precise technical data.)
No. Of Teeth30
Hub Config.Hub - With S.S. & Kwy
Class / Mat'lCommercial / Mild Steel
Bore Size32.00 mm
Face Width20.00 mm
Overall Width45.47 mm
Mounting Distance75.00 mm
Pressure Angle20.0 °
Module3 Mod.
Pitch Dia.90 mm
