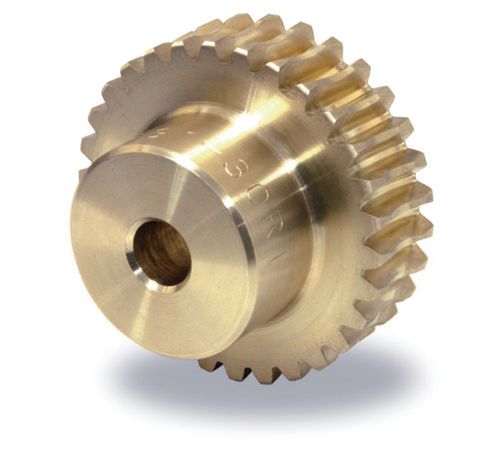

Worm gear A 1B66MYK10R020straight-toothedhub
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Teeth
- straight-toothed
- Configuration
- hub
Description
Module 1.5, 50 Tooth, 1 Start, Right Handed Aluminum Bronze Worm Gear with Plain Bore
Qty Range1 – 910 – 2425 – 4950 – 99100+
Price/Unit$118.26$113.15$108.10$103.09Request For Quote
Lead Time2 wks2 wks3 wks3 wks
Product Specifications
(Dimensions shown are for reference only, please refer to our catalog page for precise technical data.)
Bore / Hub Config.12mm / No S.S.
No. Of Teeth50
Quality Class/mat'lCommercial / Aluminum Bronze
Mating Worm1.5MOD/1 Lead/25mm PD
Pitch Dia. (PD)75.00 mm
Module( Pitch)1.50
Pressure Angle20.0 °
Face Width (FW)14.0 mm
Lead Angle3.26 Degree
Gear Ratio50.00 To 1
